The instrument clusters in 1999–2006 GMT800 trucks are notorious for several specific failures. Here’s what to watch for and how to fix them.
Most Common GMT800 Cluster Failures:
1. Stepper Motor Failure (Gauge Needles)
The most widespread issue. Stepper motors drive each individual gauge needle. When they fail, gauges read incorrectly, stick, or sweep randomly. Speedometer, tachometer, fuel, and temp gauges all use these motors. You may think you have a faulty sending unit or sensor; but in reality do not change it until you have your cluster rebuilt!
Symptoms: Gauge needle doesn’t move, reads incorrectly, or sweeps erratically on startup.
Fix: Replace the stepper motors. This is a DIY repair if you’re comfortable with soldering. The X27 stepper motor is the replacement unit.
2. Backlight Bulb Failure
The instrument cluster uses bulbs that can burn out over time. Depending on your model year, you may have twist-lock incandescent bulbs or soldered in bulbs.
1999–2002 GMT800: replaceable twist-lock incandescent bulbs.
2003–2006 and 2007 Classic: bulbs are soldered directly to the circuit board. Replacing them requires desoldering and soldering new bulbs or LEDs.

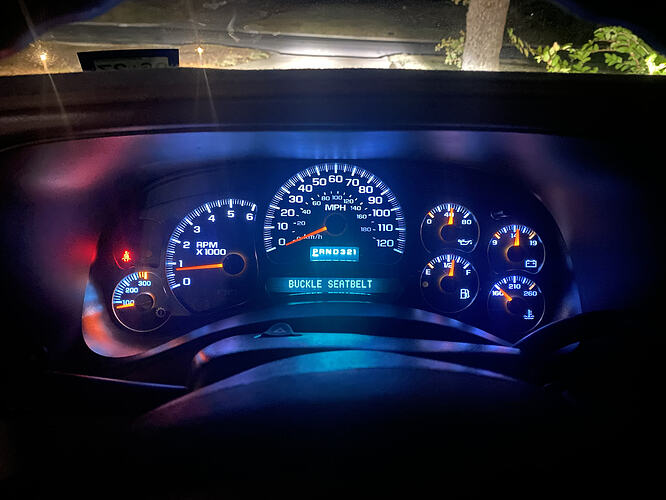

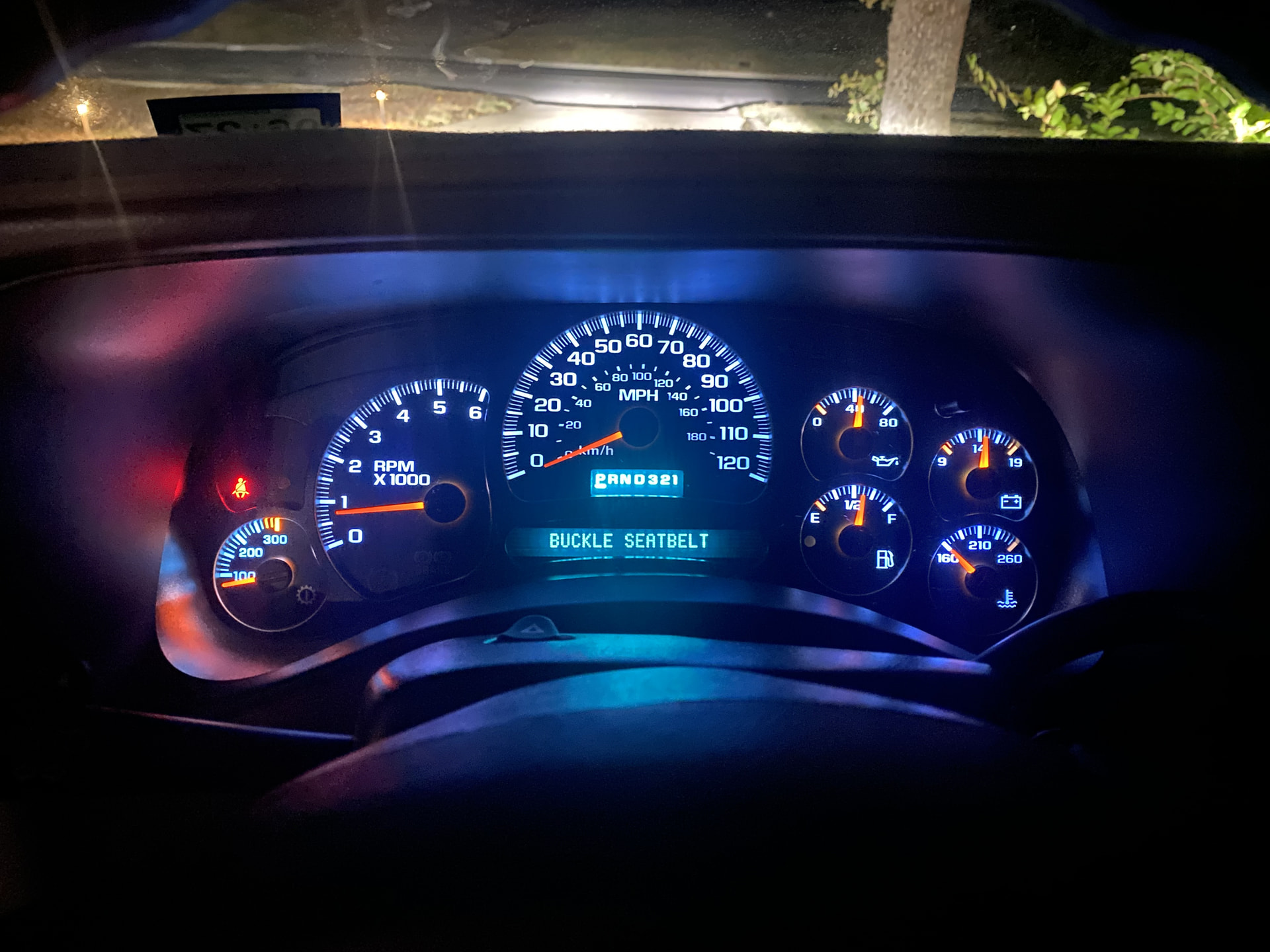

Replace with LED units for longer life, and add a personalization to your truck or SUV. I am a big fan of the ICE Blue Leds (shown below on a 99-02).
3. Odometer Display:
The odometer on some clusters uses a small gear/LED display that can fail. This is harder to repair. 99-02 Trucks and SUV’s have an odometer that is soldered in; 03-06 can be programmed to match the mileage. If swapping clusters, be sure to input the correct mileage!
4. Dimmer Control Issue:
If the cluster dims without being adjusted, the headlight switch potentiometer may be failing and may need replacement.
Tools Needed for Stepper Motor Replacement:
- Torx T15 and T10 screwdrivers
- Small soldering iron and solder
- Desoldering braid or pump
- X27 stepper motors (available online in 7-packs for all gauges)
Cluster Removal:
- Remove top dash cover by putting the truck/suv in 1st, and dropping the steering column as low as it can go.
- Pull dash pad back, disconnect any switches or electrical.
- Remove 4 cluster mounting screws (should be 7 mm)
- Disconnect electrical connector for 99-02, 03-06 cluster will just pull straight out
AstroAI Multimeter – Useful for checking cluster ground connections and power supply during diagnosis.

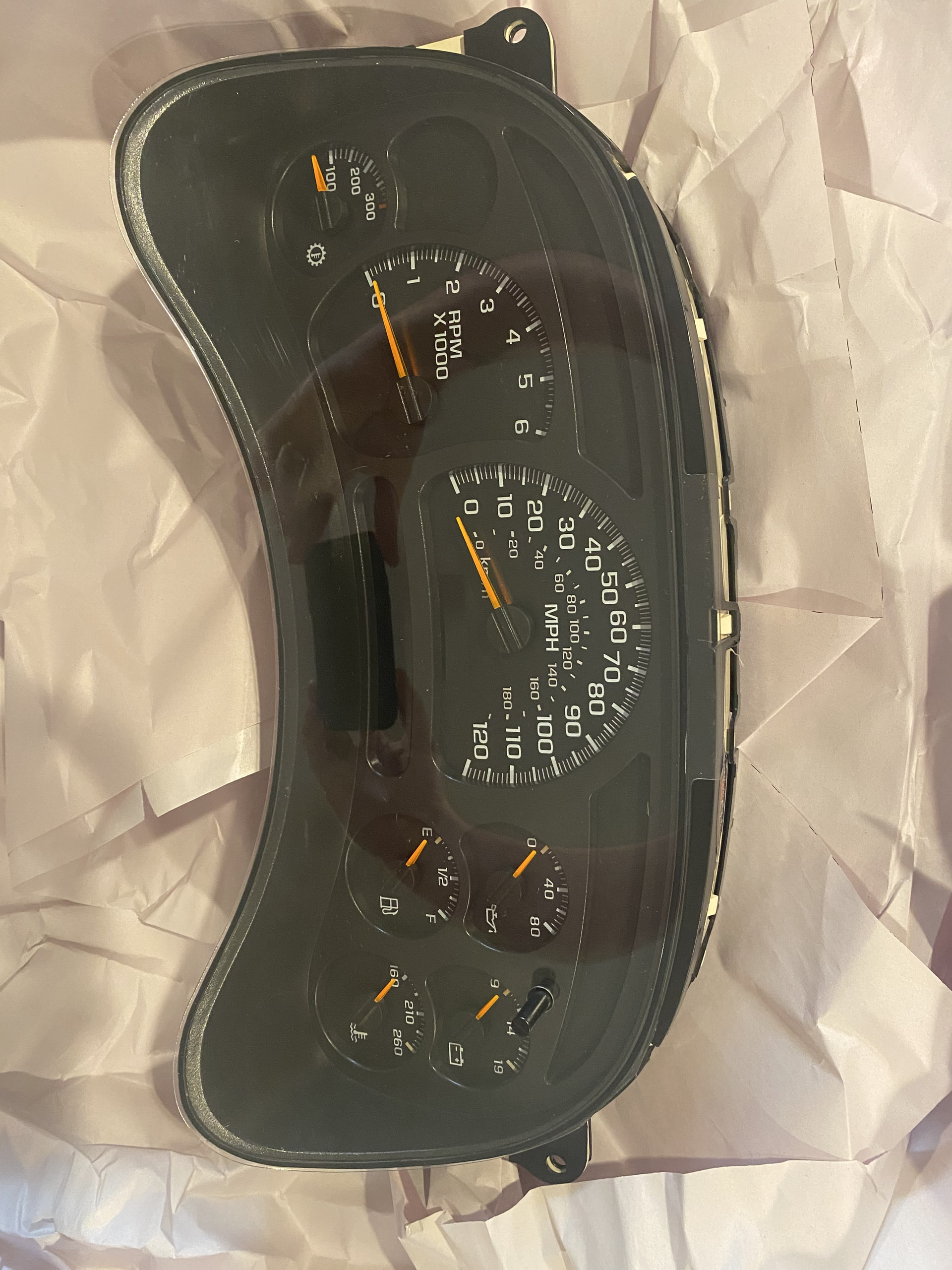

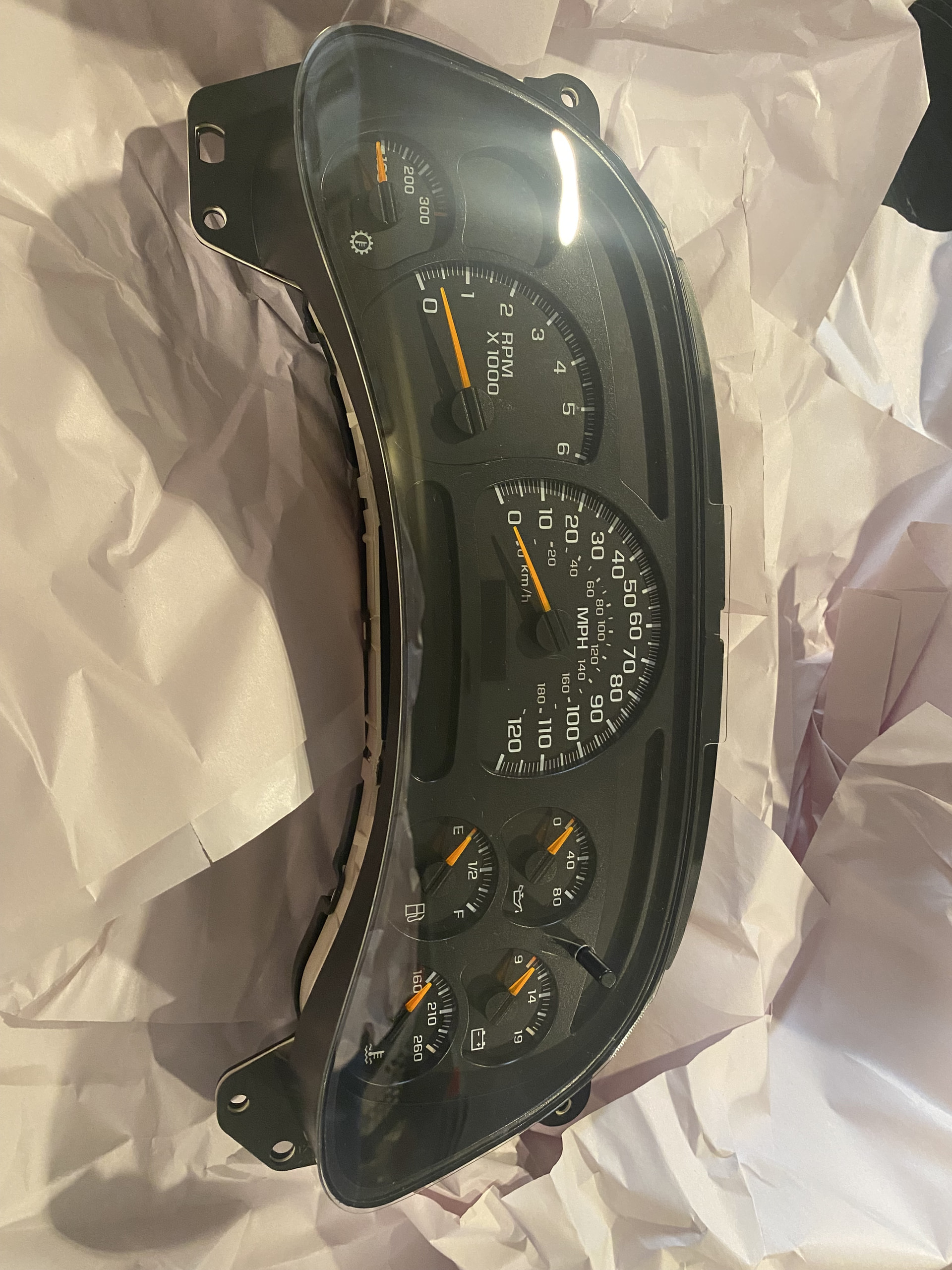

Full Cluster Rebuild:
If it’s a vehicle you plan on keeping for another 20 years, it might be a good idea to have the cluster fully rebuilt. Thankfully, there are many companies out there now offering GMT800 full cluster rebuilds. You might check your local marketplace, or simply a search for “gmt800 cluster rebuild”.

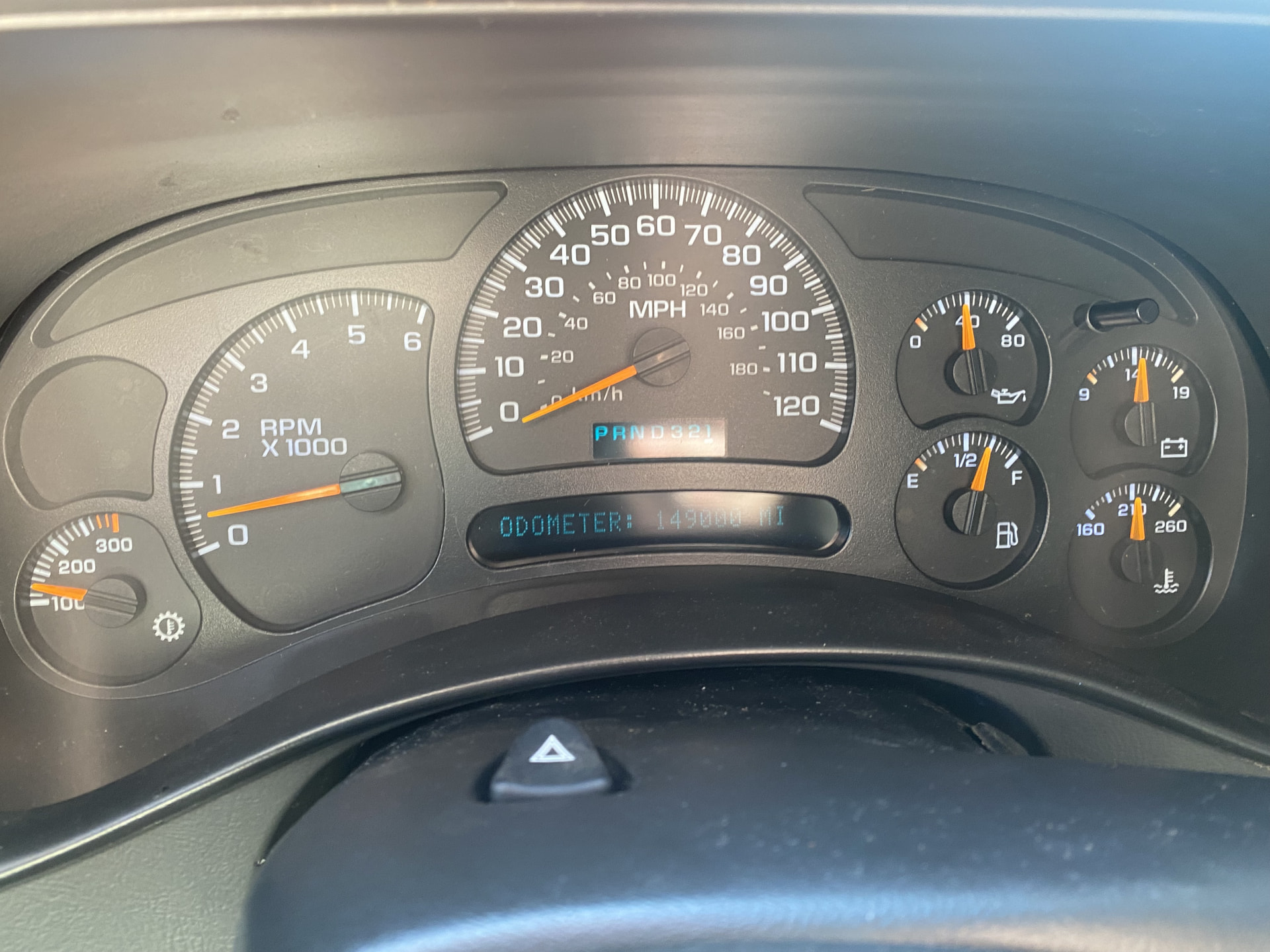

P.S. If you have a 1/2-ton gas GMT800 truck or SUV, you can upgrade to a cluster with a transmission temperature gauge by swapping in a gas HD cluster from a 3/4-ton or 1-ton truck.
Another great option is the Escalade cluster upgrade. It adds the trans temp gauge and gives the interior a much nicer look at night with the upgraded color/lighting.
For year compatibility:
-
1999–2002 trucks/SUVs use a 1999–2002 Escalade cluster.
-
2003–2006 trucks/SUVs use a 2003–2006 Escalade cluster.
Here’s a quick look at my 2002 Escalade cluster lit up beautifully at night:
Important note: diesel clusters have a 5,000 RPM redline, while gas clusters have a 6,000 RPM redline. For a gas truck or SUV, stick with a gas cluster.
